Avid Venue Profile System

Key Features:

48 analogue inputs on XLR
24 analogue outputs on XLR
8 AES3 outputs on XLR, or ADAT
TOSLINK in Stage rack
8 AES3 inputs on XLR in FoH rack.
8 AES3 outputs on XLR in FoH rack
Support for native and third-party AAX Plug-ins

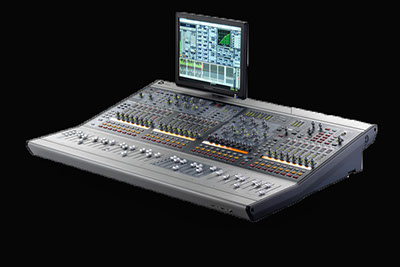

The Avid Venue Profile System is a modular system consisting of three main components - the control surface, the Front of House rack, and the Stage rack. In addition to the standard configuration, our Profile Front of House rack comes with:

4 DSP Mix Engine cards

ECx Ethernet option card

IOx Option card - an extra 8 channels of AES3 I/O on XLR (4 stereo pairs) and 8 pairs of analogue I/O on TRS Jack

Patch panels are included with the FoH rack which mean all I/O connections are available on XLR.

The Stage rack has also been fitted with:

3 SRO analogue output cards, giving 24 analogue outputs in total.

1 DSO digital output cards, with 8 channels of AES3 I/O on XLR (4 stereo pairs) and an ADAT TOSLINK optical connector

Our stage rack is also fully compatible with our analogue stage line system, and is fitted with a Veam 48 channel input, so connecting to our analogue stage boxes is as easy as connecting one cable.

Supplied with a 100 metre 6-way BNC multicore with 32 amp power.

£275.00 + VAT per day
